SW-D302FS-10

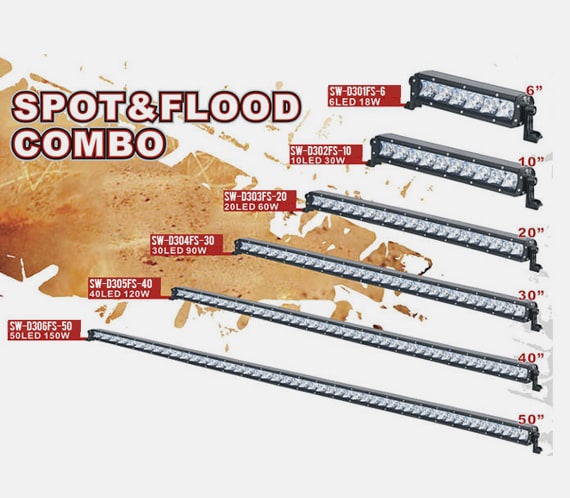

Spot & Flood LED Bars
SW-D302FS-10
Specification
- 1. Operating Voltage: DC 9-33V
- 2. Water & Dustproof rating: IP68
- 3. Temperature range: -40°C to +60°C
- 4. Life span: 50,000 hrs
- 5. Housing color: Black

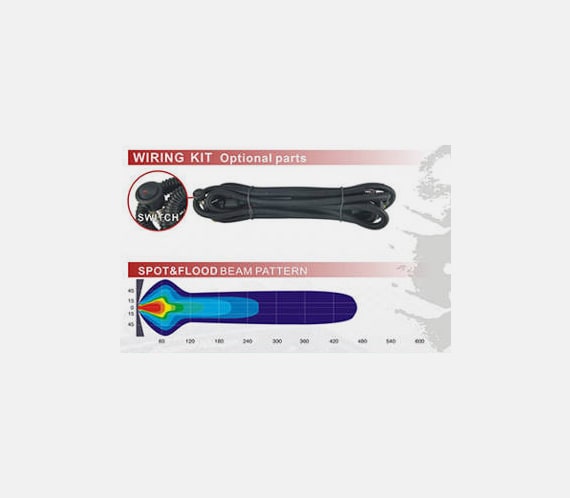

- 6. Beam Pattern: COMBO
- 8. Mounting: Aluminum bracket
- 9. Efficient heat dissipation; Aluminum housing
- 10. Mounting: Aluminum firm bracket
- 11. Lens: PC with hard coating
- 12. Color temperature: 6000K
- 7. Easily mountable on forklifts, tractors, earthmoving, and other heavy duty mobile applications as well as commercial fishing trawlers -these lights enhance operational efficiency and safety.

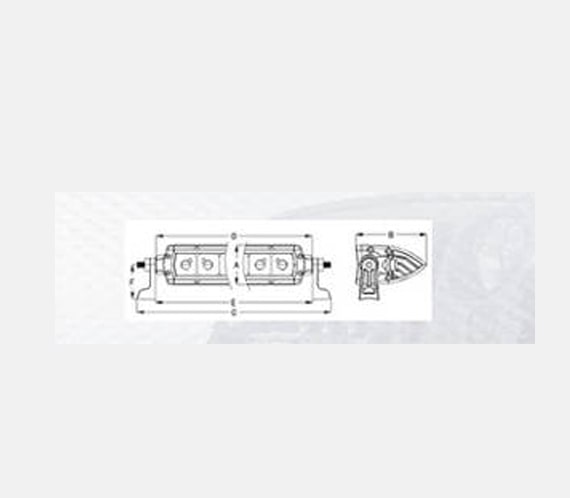

| Size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 6" | 44 | 80 | 236 | 194 | 196 | 38 |
| 10" | 44 | 80 | 337 | 295 | 297 | 38 |
| 20" | 44 | 80 | 591 | 549 | 551 | 38 |
| 30" | 44 | 80 | 845 | 803 | 805 | 38 |
| 40" | 44 | 80 | 1099 | 1057 | 1059 | 38 |
| 50" | 44 | 80 | 1353 | 1311 | 1313 | 38 |
| Item No | LED | LED QTY | OPERATING VOLTAGE | CURRENT | LED COLOR TEMPERATURE | LIFE SPAN | LUMINOUS FLUX | WATER&DUST PROOF | RUNNING AMP DRAW(Al) DC12V | RUNNING AMP DRAW(Al) 24V | POWER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SW-D202FS-6 | 3W | 6LED | 9-33V | 1.113 | 6000K | 50,000 hrs | 720 Lm | IP68 | 1.2 | 0.6 | 28W |
| SW-D203FS-10 | 3W | 10LED | 9-33V | 1.855 | 6000K | 50,000 hrs | 1,200Lm | IP68 | 2 | 1 | 30W |
| SW-D204FS-20 | 3W | 20LED | 9-33V | 3.710 | 6000K | 50,000 hrs | 2400 Lm | IP68 | 4 | 2 | 60W |
| SW-D205FS-30 | 3W | 30LED | 9-33V | 5.515 | 6000K | 50,000 hrs | 3600 Lm | IP68 | 6 | 3 | 90W |
| SW-D206FS-40 | 3W | 40LED | 9-33V | 7.420 | 6000K | 50,000 hrs | 4800 Lm | IP68 | 8 | 4 | 120W |
| SW-D207FS-50 | 3W | 50LED | 9-33V | 9.275 | 6000K | 50,000 hrs | 6000 Lm | IP68 | 10 | 5 | 150W |
