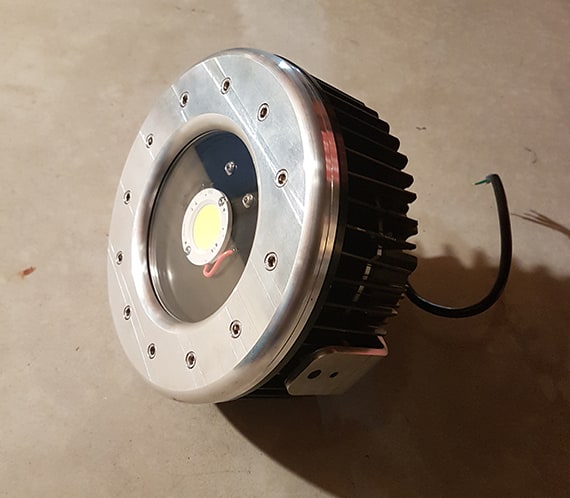

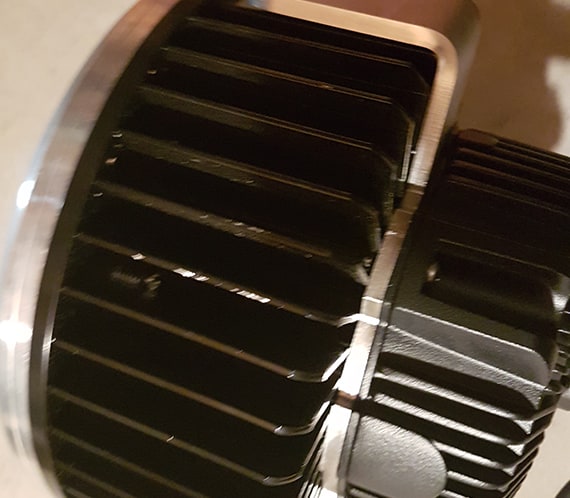

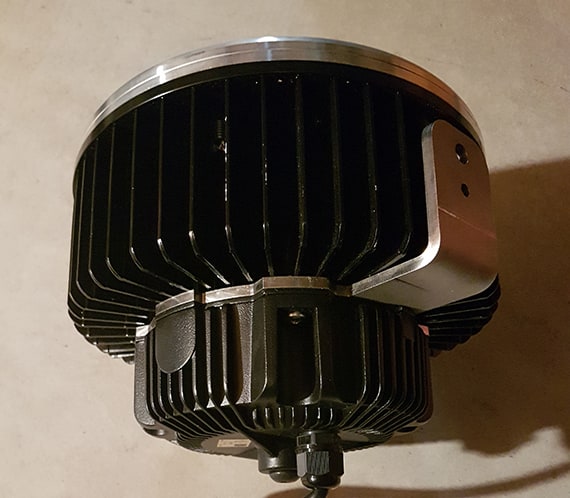

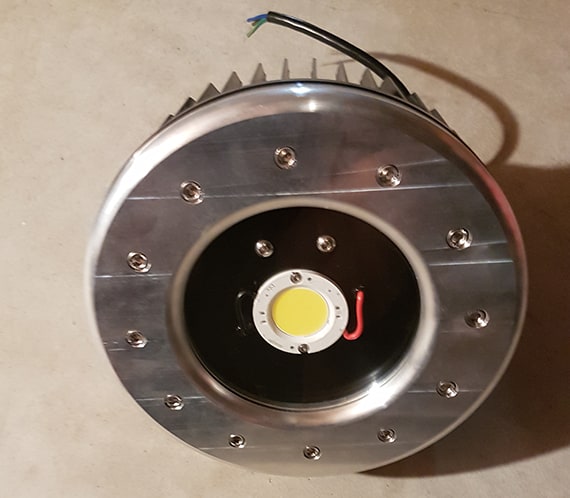

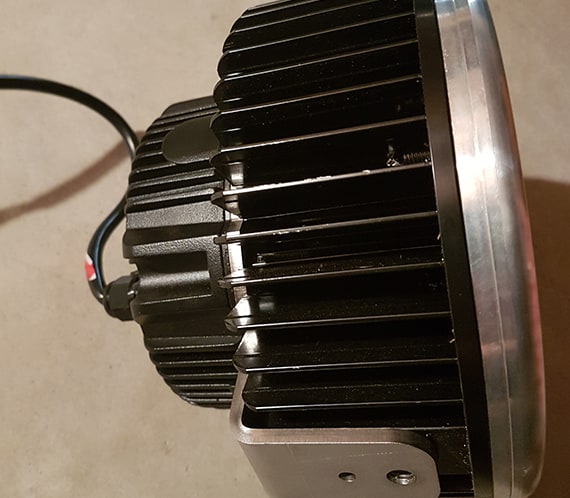

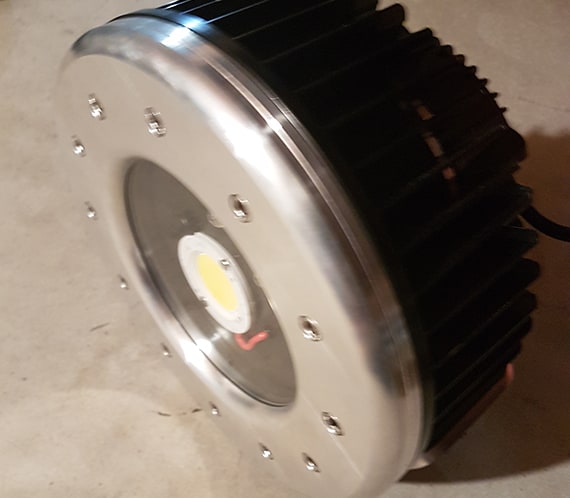

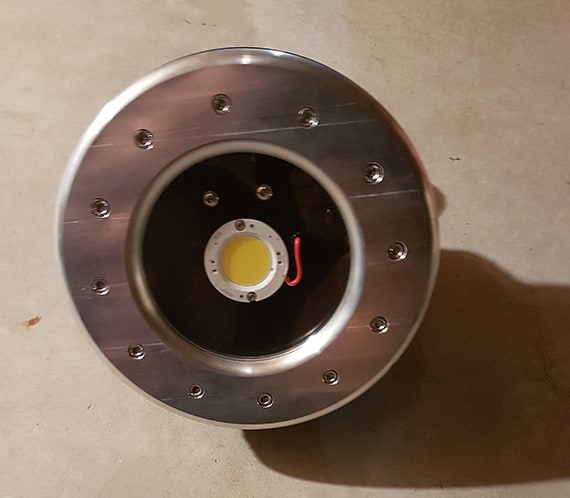

UNIVERSAL MARINE / INDUSTRIAL LIGHT
Flood LED Lights
UNIVERSAL MARINE / INDUSTRIAL LIGHT
Specification
- 1. Luminaire : Nominal at 25°C
- 2. Water & Dustproof rating: IP68
- 3. Temperature range: -40°C to 90°C
- 4. Power input: 150W
- 5. Lumens: 25 500 lm
- 6. Optics: Standard 120° lighting. 30°, 60° or 90°
- 7. Weight: 14 lbs (6,35 kg)
- 8. Certification: CSA Approved.
- 9. Electrical: High efficiency electronic

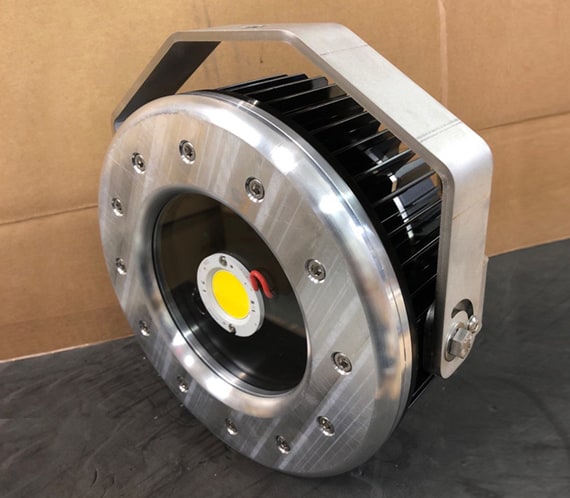

- 10. Mounting: Supplied with hanging bracket
- 11. Dimming: Compatible with 0-10V dimming
- 12. Finish: Black and silver
- 13. Weight: 14 lbs (6,35 kg)
- 15. Source: Bridgelux® COB tech
- 16. The Calculated L70 lumen maintenance of 250 000 hours is based on TM-21 lifetime calculation with >70% of initial lumens. This Calculated L70 lifetime is for the Vero products at a MAX. temperature of 85°C and nominal drive current operating condition. (LM-79 tested)
- Made in Canada & CSA Approved
| Item No | LED | LED QTY | OPERATING VOLTAGE | CURRENT | LED COLOR TEMPERATURE | LIFE SPAN | LUMINOUS FLUX | WATER&DUST PROOF | POWER |
|---|---|---|---|---|---|---|---|---|---|
| SW-1711-K1 | 7W | 7LED | 9-43V | 1.245 | 6000K | 50,000 hrs | 5040Lm | IP68 | 49W |
| SW-5001-FL | 10W | 4LED | 10-30V | 1.245 | 6000K | 30,000 hrs | 3600Lm | IP68 | 40W |
| SW-105B-SP | 3W | 6LED | 9-33V | 1.245 | 6000K | 50,000 hrs | 3230Lm | IP68 | 18W |
| SW-111-SP | 3W | 4LED | 9-33V | 0.83 | 6000K | 50,000 hrs | 1100Lm | IP68 | 12W |
| SW-119-SP | 10W | 1LED | 9-32V | 0.83 | 6000K | 50,000 hrs | 900Lm | IP68 | 10W |
